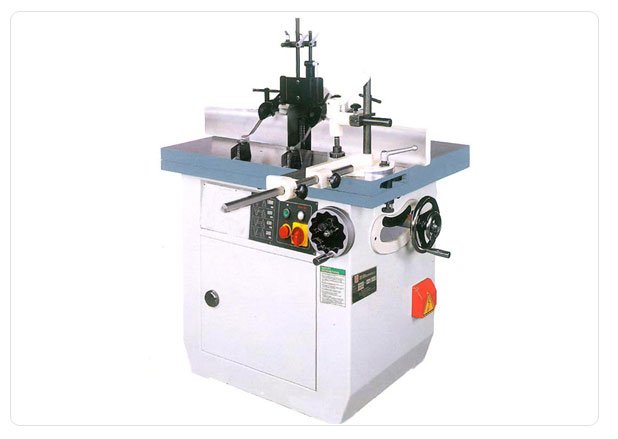

Spindle Moulder

MODEL SS-5 TS
SALIENT FEATURES:

INTERCHANGEABLE SPINDLES: Choice of 3 spindle diameters (, 1, 1- ) or choice of metric sizes 19mm, 25.4mm, 30mm. Spindle has MK5 taper to ensure precision fitting and flow quick changeover.
QUICK CHANGE SPINDLE SPEEDS: The spindle is driven by a four speed dynamically balanced pulley for spindle speeds of 3000, 4500, 7500 and 10000 rpm. Change of speed is quick and easily accomplished by simply loosening a lock lever, and shifting the belt to the required speed setting.
REVERSIBLE SPINDLE ROTATION: The spindle is reversible to ensure safe rotation in clockwise or counter clockwise direction as well as providing the ability to climb cut glued panels.
SPINDLE RAISING: the spindle is raised or lowered by a graduated hand wheel, providing 1 mm elevation per full revolution. Quick clamp lever positive holds spindle at a set height.
TABLE INSERTS: The spindle is fitted\two insert rings (6-3 /8 & 8-5 / 8) permitting for use of a wide variety of shaper cutters and spindle speed.
FENCE: The fence assembly is attached with a 4 diameter outlet dust hood. The fence halves can be precision adjusted by micrometric adjustment knob with 0.008 graduation.
TABLE: The massive table is made from high quality cast iron (FC-25 grade) and undercast ribbing is engineered for maximum strength and long-term table stability. Table surface is precision ground and polished.
ROUTING OPERATION: The MK5 taper on the spindle accepts a router collet system, providing maximum flexibility all in one shaping and routing machine.

OPTIONAL:
Digital LCD display available, showing Spindle elevation and fence adjustments

TECHNICAL SPECIFICATION:
* Spindle Dia

:

35mm
* Spindle speed : 3000 / 4500 / 7500 / 10000
* Taper of spindle : MK5
* Spindle Motor : 5 HP 1
* Spindle Travel : 130mm
* Spindle Capacity under nut : 100mm
* Tilting Angle : -5 ~ 90 ~ +45
* Table Size : 700 x 900mm
* Table Height : 900mm
* Sliding Table Size : 900 x 230mm
* Sliding Table travel : 830mm
* Fence size : 125 x 900mm
