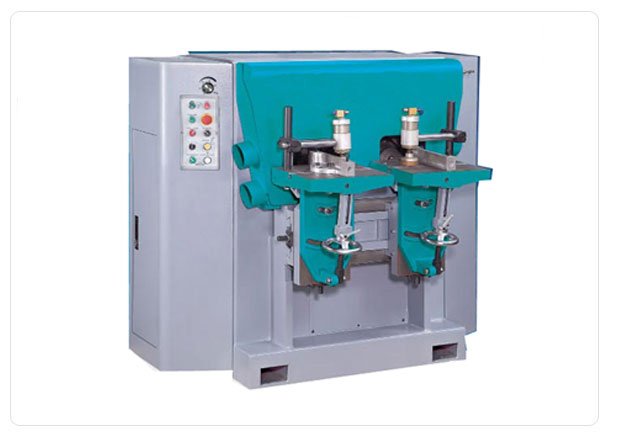

TENONING MACHINE



TECHNICAL SPECIFICATIONS:
Spindle Speed   9000 RPM
Max. Width of Tenon   100 mm +2R
Max. Depth of Tenon   0 ~ 50mm
Table Tilt (Table Area) 314 x 358
Table Tilt (Forward) +   5X ~ - 20X
Table Tilt (Lateral) 15X
Table Tilt (Workpiece Fence Swivelling)   45X
Spindle Motor   4 HP
Cutter Cycle Motor   1 HP
Net Weight   750 KG / 850 KG
Machine Dimensions   1600 x 1100 x 1370mm
Packing Dimensions   1650 x 1150 x 1470mm
