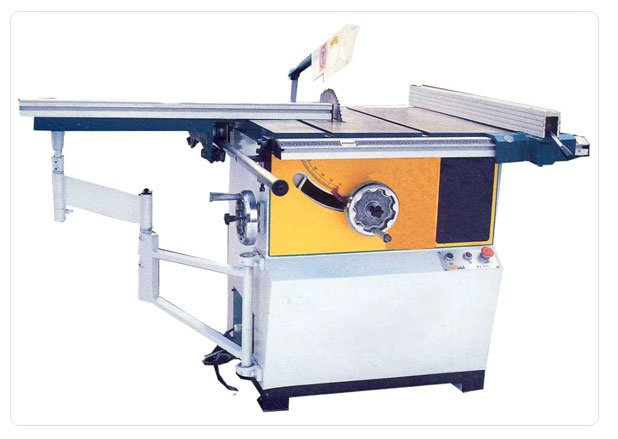

Circular Saw

Circular Saw

SALIENT FEATURES:
The Main base of the machine is heavy duty thereby eliminating total vibrations.
The Main table of the machine is a heavy duty casting thereby having high precision surface.
Saw can be Raised and Lowered through a convenient hand wheel.
Saw can be tilted from 0 to 45deg through another convenient hand wheel.
The Spindle of the machine is hardened; ground and dynamically balanced having high accuracy.
The machine is a totally enclosed type having a provision whereby it can be connected to a Dust Collector.
The machine has a most modern safety guard for the blade which can be adjusted to the desired height thereby ensuring maximum possible protection to the operator.
The machine is provided with a quickly adjustable fence through the entire length of the table.

TECHNICAL SPECIFICATIONS:
* Maximum Cutting Height

:

80MM
* Spindle Angle : 45 -90
* Adjusting Height : 0-80MM
* Total Motor Power : 3 KW
* Main Spindle Rotation : 3550 R/Min
* Dimension of Working Table : 950x750mm
* Diameter of Max Saw Blade : 305mm
* Working Power : 3- HP
* Dimension : 1300x1000x1000mm
* Weight of the Machine : 300 KG
