Double Side Planer With Rip Saw

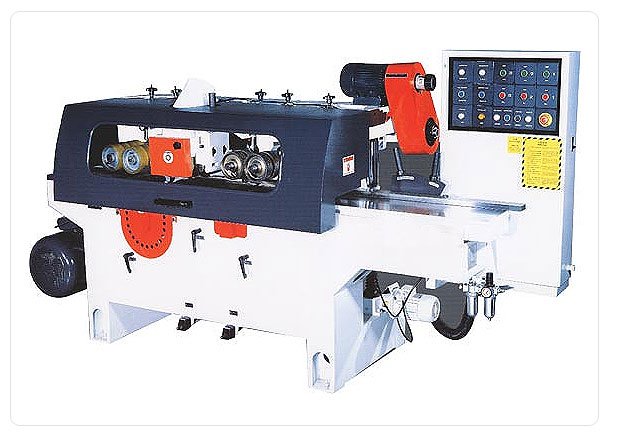

Double Side Planner With Multi Rip Saw
MODEL DSPMRS-9320

SALIENT FEATURES:
This Saw Blades with narrow rip may make output efficient and profitable.
This machine planes wood at two surfaces to reach a certain thickness, and then divide with Multi Rip Saw blades into specified piece, Throughfeed and Finish the divided cutting in one go, so it has high production efficiency, use saw as planer and the machining quality is good.
It is ideal equipment for Producing ,Mouldings, Laminated Veneer, high precision and small panel.

TECHNICAL SPECIFICATIONS:
- Maximum Working Width : 200mm
- Maximum Working Thickness : 75mm
- Feeding Speed : 4-18 m/min
- Top Spindle Diameter : 40mm
- Top Spindle Rotation Rate : 6000 R/Min
- Top Spindle Movement : 20mm
- Top Spindle Motor Power : 5.5/7.5 KW / HP
- Bottom Spindle Diameter : 40mm
- Bottom Spindle Rotation Rate : 6000 R/Min
- Bottom Spindle Motor Power : 4/5.5 KW/HP
- Cutting Spindle Diameter : 40mm
- Cutting Spindle Rotation Rate : 4000 R/Min
- Maximum Saw Blade Diameter : 300mm
- Spindle Motor Power : 22/30 KW/HP
- Spindle Elevating Motor Power : 0.3/0.5 KW/HP
- Feeding Motor Power : 2.2/3 KW/HP
- Elevating Motor Power : 0.37/0.5 KW /HP
- Total Power : 34.44/46 KW/HP
- Air Pressure : 0.7 Mpa
- Dimensions : 3020mm x 1320mm x 1540mm
