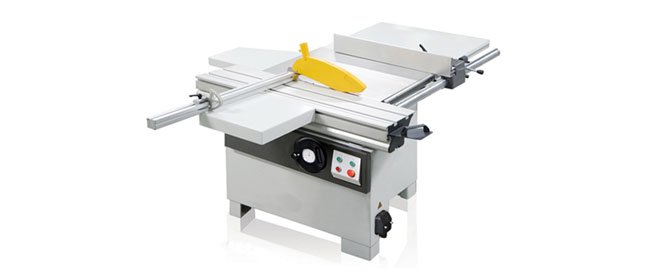

SANDEEP PANEL SAW MODEL S315

Not every workshop needs a large panel saw which occupies big working space. but a compact, fully featured saw is a tempting alternative. The S315 is just that, having a robustly constructed body, in heavy gauge steel and generous grey cast iron table with heavy duty panel saw assembly that gives stability and vibration free running.

TECHNICAL SPECIFICATIONS:

Main Blade Diameter

315mm (max.)

Main Blade Speed

4000rpm

Scoring Blade Diameter

120mm

Scoring Blade Speed

8000rpm
Blade Tilt 90°-45°
Max Depth of Cut @ 45° 72mm
Max Depth of Cut @ 90° 102mm
Max Rip Capacity Standard 900mm

Option

1250mm

Sliding Beam Size Standard 1200×360mm
Option 1600×360mm
Sliding Beam Cutting Capacity Standard 1250mm

Option

1600mm

Table Size   800×530mm
Dust Extraction Outlet   100mm

Main Motor Output



3*400V 2.5kW S1
1*230V 2.5kW S1

Scoring Motor Output

0.55kW S1
Net/Gross Weight   400/460kgs
Package Size   1310×990×1085mm
