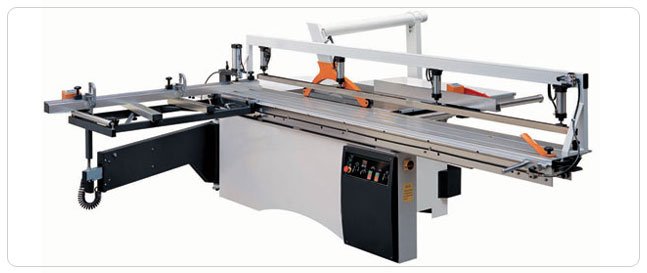

SANDEEP SLIDING TABLE PANEL SAW MODEL MJ1132

SALIENT FEATURES:
Sandeep Panel Saw MJ1132 is a Robust Machine with outstanding accuracy; quality value and is workers delight.
Large section profile cross cutting fence with reversible fence stop.
Reversible saw fence for folding away table when it needs to be free for sawing large panels.
Roller guide sliding along tempered and ground prismatic guides guarantees smooth and precision sliding cutting of less than 0.1mm.
Digital Indicator on handwheel for saw tilt.
Micro adjustment of the scoring saw.
Special euro saw guard fitting on the riving knife with saw dust pipe.
Thermal cut out for motor protection.

Dust collector with pipe and clamps (optional)

TECHNICAL SPECIFICATIONS:

Main Saw Diameter (Max.)

315mm x 30
Main Saw Speed 4000 rpm
Scoring Saw diameter 120mm x 20
Scoring Saw speed 8000rpm
Machine Working height 900mm approx.
Min. transport width in mm 800mm
Saw tilting 90-45
Cutting height at 45 72mm
Cutting height at 90 102mm
Maximum Rip capacity 1250mm
Sliding table movement 3200mm
Table Size 800 (530x820)mm
Dust collection size 100mm

Main saw motor Single phase

  220V 3 KVA

Scoring saw motor Single phase

  220V 0.5 KVA

Total Power

  3 KW
Weight 600kg
Packing size of main machine on Pallet   2300 x 1080 x 1150mm
Packing size of sliding table in box   3560 x 480 x 210mm

No. of Machine in one 20 container



6 Nos.
No. of Machine in one 40 Container   16 Nos.

The cast iron saw unit gives extra support for stability and least vibration

A Electronic digital display is provided to show the precise position of the fence from the blade.
