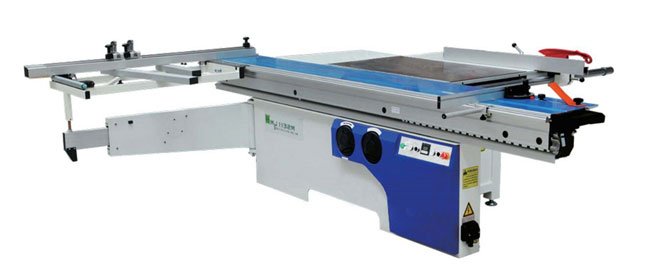

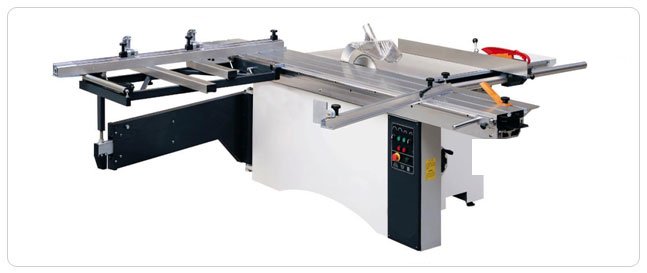

SANDEEP PRECISION SLIDING TABLE PANEL SAW MODEL MJ1132M

SALIENT FEATURES:

Inside construction of the machine is Heavy Duty Cast Iron spindle Assembly. This helps for Minimum Vibrations.

Automatic motorized Movement is provided for Main Saw Assembly on Linear Bearings and Scoring Saw Assembly on a pivot having micro adjustment with a knob

Tilting of the saw Assembly is by Hand wheel fitted in front of the machine and an electric digital display in front of the machine showing the angle of saw blade.

Sliding provided through High Precision Hardened Ground Chrome plated steel rods imported from Germany
Extremely exact cut no more cutting edge damages. Burr free cutting. Cutting Accuracy less than 0.15mm.
Perfect job cutting on Wood, Plastic or Non Ferrous Metals.

Heavy Duty Cast Iron Fence provided on the machine with a scale and Two Nos. Adjustable
Length stops on the sliding carriage for multiple size settings.


TECHNICAL SPECIFICATIONS:
Max. Cutting Length with sliding table 3100 mm
Max. Cutting width with Rip Fence 1200mm
Max. Saw Blade cutting Height at 90 70mm with Blade Size 300mm
100mm with Blade Size 350mm
Max. Saw Blade cutting Height at 45

53mm   with Blade Size 300mm
70mm   with Blade Size 350mm

Main Saw Speed (RPM)

3800/5200

Main Saw Motor

5.5 KW / 7.5 HP

Scoring Saw Motor

0.75 KW / 1.1 HP

Scoring Blade Speed (RPM)

9000

Main Blade Size

300mm/ 350 X bore 30 mm

Scoring Blade Size

120mm X bore 20 mm

Blade Tilting

90 - 45

Tilting of Blade By Hand Wheel and Digital Display on the Machine panel
Height Adjustment of Main Saw & Scoring Saw Manual
Dust collection adaptor Size

100 mm and 60 mm

Approx. Weight

1000 Kg

Overall Dimension

3300 x 3330 x 1050mm



Machine Frame: The heavy duty well fabricated and heat treated body frame is strong and stable and long service life is guaranteed.
Saw Units: Powerful motor to ensure excellent cutting performance;  Main Saw rotating speed can be easily changed between 5200 and 3800 rpm.

Sliding Carriage: Heavy Duty & Precision Sliding table.
Labour saving and high cutting precision due to the hardened and paralleled rails from Germany ; The anodized aluminum carriage is stable and avoid scratches left on panels; The carriage can be locked at any one of the pre-set positions;

Rip Fence:
The rip fence can move smoothly on working table
and be locked firmly at any desired position. A Scale is fitted to see the setting.
Metre Fence: The quick-lock metre fence can be set from -45 to 45.


Splitter: The Splitter prevents ejection of work piece chips and
improves operator safety. The Splitter can be adjusted as per the main saw blade. A Saw guard is fitted over the spindle with provision to Connect the Dust collector or system.
