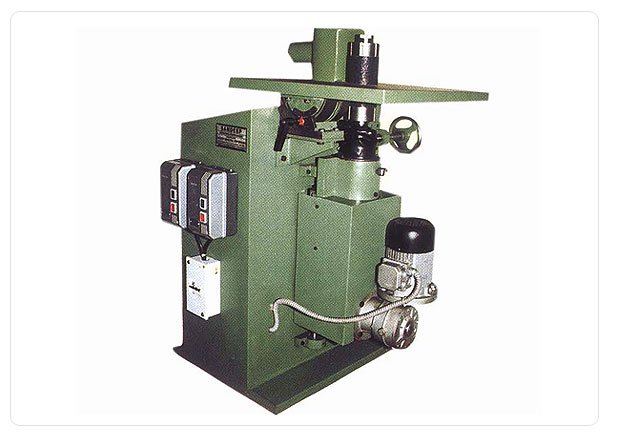

Vertical Bobbin Sander |
This type of
Sanding Machine is a Machine is a wonderful time and labour saver in any
Wood Working shop where wide variety of curved work is to be Sanded. |
|
SPECIAL
FEATURES: |
|
THE MAIN
FRAME is well proportioned having a large base area to ensure steady
vibration free running. |
THE TABLE
is of graded cast iron having ground finish and is arranged to cant 45
degree below and 15 degree above the horizontal and can be locked where
desired. |
THE
SANDING BOBBIN is driven by an electrical motor while a reciprocating
motion is given to the Bobbin by means of a Geared Motor. A screw adjustment
is provided to enable the operator to raise and lower the bobbin slide to
allow the full length of the abrasive paper to be used. The motion is
operated by a wheel and machine cut steel gears. |
|
TECHNICAL
SPECIFICATION : |
|
|
Sanding Bobbin Dia Min |
: |
50mm Max. 90mm |
Maximum Length of
material sanded |
: |
175mm |
Size of Table |
: |
600 x 600mm |
Stroke of bobbin |
: |
20mm |
Spindle Motor
|
: |
1.5 H.P. |
Geared Motor |
: |
0.5 H.P. |
Table Tilt |
: |
+45º, - 15º |
|
|
|
STANDARD ACCESSORIES : |
|
|
- Appropriate Spanners
|
: |
1 Set |
- Appropriate Allen Keys
|
: |
1 Set |
