SPECIAL FEATURES : |
| |
|

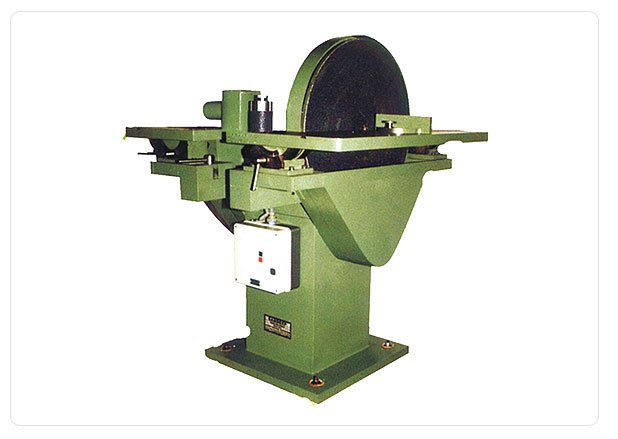

The main frame is well proportioned having a large base area to ensure
steady vibration free running. |
| |
|
The sanding disc is of steel, accurately turned and dynamically balanced and
mounted on the electric motor, the shaft of which forms the disc spindle. |
| |
|
The table is of graded cast iron having ground finish and is arranged to
cant 45 degree below and 15 degree above the horizontal and can be locked
where desired. |
| |
|
The sanding bobbin is driven by an electrical motor while a reciprocating
motion is given to the Bobbin by means of a Geared Motor. A screw adjustment
is provided to enable the operator to raise and lower the bobbin slide to
allow the full length of the abrasive paper to be used. The motion is
operated by a wheel and machine cut steel gears. |
| |
|
SALIENT FEATURES : |
|
* Independent Motors of sanding disc and vertical bobbin. |
|
* Both Disc and Bobbin tables cant below and above horizontal and are
provided with graduated scales. |
|
* Swiveling fence fitted to disc table. |
|
* Bobbin has a reciprocating motion to ensure smooth finish to work. |
|
* Turned steel sander disc. |
|
* Sanding Bobbin slide can be adjusted vertically to allow for wear on the
abrasive paper. |
|
* Various diameters of bobbins may be used. |
|
* Dust outlets provided to Disc and Bobbin for connecting to Dust Extractor. |
|
* Efficient Guard over sanding disc. |
| |
|
TECHNICAL SPECIFICATIONS : |
| Diameter of
Sanding Disc |
: |
700mm |
| Size of Table
for Disc |
: |
850 x 425mm |
| Table Tilt |
: |
+45
degree-15degree |
| Speed
|
: |
900 RPM |
| Motor Power
|
: |
3 HP |
| Sanding Bobbin
Dia |
: |
Min: 50mm max.
90mm |
| Maximum Length
of material sanded |
: |
175mm |
| Size of Table
|
: |
600 x 600mm |
| Spindle Motor |
: |
1.5 H.P. |
| Geared Motor
|
: |
0.5 H.P. |
| |
|
|
|
STANDARD
ACCESSORIES : |
| - All
Electric Controls fitted on the machine. |
| - Tool Box
consisting of Appropriate Spanners 1 Set |
| |
Appropriate Allen Keys 1
Set |
| |
Grease Gun 1 No. |
| |
Oil Can 1 No. |
| |
Screw Driver 1 No. |
| - V-Belt One
fitted with the machine |
| - Paper Disc
Affixed on the Disc |
| - Bobbin
Emery Belt Fitted on the Bobbin |
| |
|
DIMENSIONS OF THE MACHINE |
| - Length
1200mm |
| - Width
1600mm |
| - Height
1600mm |
| - Shipping
Volume 3 Cum. |
| - Net Weight
350 Kgs. approx. |
| - Gross
Weight 600 Kgs. approx. |
| |
