SALIENT FEATURES: |
|
|
|
|
|
|
|

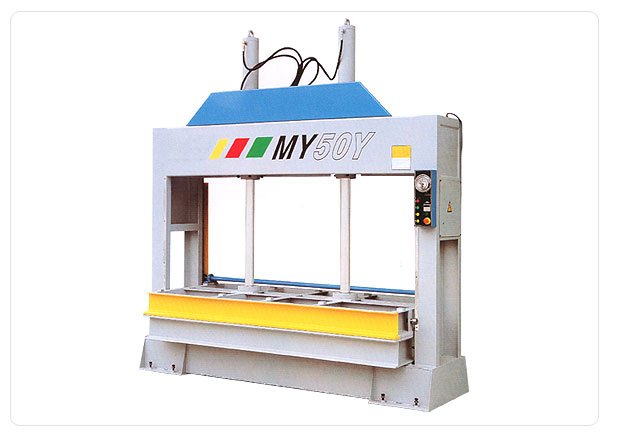

• This is one of the Finest Design
amongst the Hydraulic Cold Presses. |
|
• This is a very Heavy Duty and
Robust Machine & Weigh’s 3500Kg. |
|
• The Raising and Lowering of the
Press Plate is through two Hydraulic Cylinders and its parrallity to the
Base Plate Controlled by Two Precision Racks on either side of the Press
Plate. Thus leaving no chance of any misalignment. |
|
• The Press Plate can be Raised and
Lowered by inching also if desired. |
|
• The Machine is provided with a
Timer which can be set to desired duration of Pressing dependent on the
job being done and as soon as the time is over, a Hooter gives the
signal / the pressing table lifts automatically. |
|
• Desired Pressure can be set on the
manometer dependent on the applications need. The Hydraulic Power pack
is fitted on the top of the machine. Hydraulic Oil is provided with the
machine for ready use. |
|
• An Indicator Plate is put in front
on the machine to guide the operator as how to put the job in the
correct manner on the Base Plate. |
|
• Suitable for Small and Medium
Furniture & Panel Processing Factories. |
|
• All Hydraulic Controls and
Electricals are fitted in a Panel on the front side of the machine. An
Emergency Switch is also provided on the Electric Control Panel. There
is no Electric Consumption during the set pressing time. |
|
|
TECHNICAL
SPECIFICATIONS: |
|
|
| * Press
Plate |
: |
2550 x
1250mm |
| * Press
Stroke |
: |
900mm |
| * Press
Power |
: |
50t |
| * Motor
Power |
: |
5.5 KW |
| * Net
Weight |
: |
3500 KG |
| * Overall
Weight |
: |
2920 x
1250 x 2700mm |
|
|
|
|
Terms and conditions for the supply
of this machine are enclosed. |
