SALIENT FEATURES: |
|

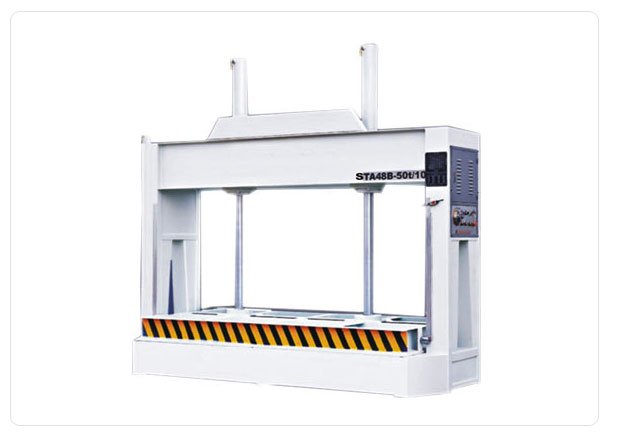

• This is one of the Finest Design
amongst the Hydraulic Cold Presses. |
|
• This is a very Heavy Duty and
Robust Machine Weight 3500Kg. |
|
• The Raising and Lowering of the
Press Plate is through two Hydraulic Cylinders and its parrallity to the
Base Plate Controlled by Two Precision Racks on either side of the Press
Plate. Thus leaving no chance of any misalignment. |
|
• The Press Plate can be Raised and
Lowered manually also if desired. |
|
• The Machine is provided with a
Timer which can be set to desired duration of Pressing dependent on the
job being done and as soon as the time is over, a Hooter gives the
signal. |
|
• Desired Pressure can be set on the
manometer dependent on the applications need. |
|
• An Indicator Plate is put in front
on the machine to guide the operator as how to put the job in the
correct manner on the Base Plate. |
|
|
|
TECHNICAL
SPECIFICATIONS: |
|
|
| * Press
Board Dimensions |
: |
2500 x
1250mm |
| * Max.
Pressure |
: |
50t |
| * Max.
Opening |
: |
1000mm |
| * Rolling
device |
: |
4 Groups
x 10pcs |
| * Support
capacity Rolling |
: |
2000kg |
| *
Installed Power |
: |
4 KW |
