General Introduction:

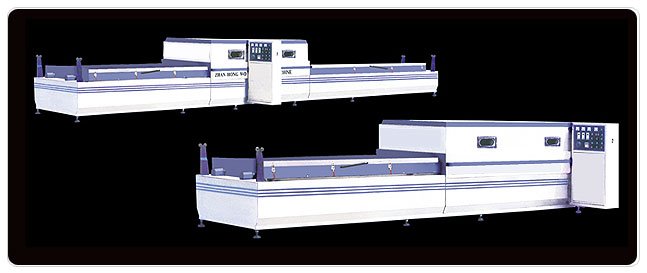

This Machine can be used to paste PVC on Furniture, Cabinets, Speakers, relief doors, decoration Panels for walls and other abnormal decoration shapes with a special Silicon Sheet. It can also work with hot transfer and veneer.
1. The Electronic Part is fully automatic and digitalized control. The Components are produced by famous domestic enterprises in good quality. The Temperature is controlled by computer chips so that the heating speed is adjustable and the temperature can be perfectly managed.
2. Infraed Heating system and high quality heat preservation material are used. Which can ensure even heating and energy saving.
3. This machine uses integrated movement electromotor. It produces less moise and seldom breaks down.
4. This machine uses top 2X Series vacuum pump. It is stable and reliable and the maintenance work is simple (You can also opt for German-made vacuum pump, which is strong and tough)
(Technical Specifications)
(Exterior size) : 5800 (8600)mm×1500 mm×1400mm
(Working plate size) : 2550mm×1100(1300)mm
(Rating working pressure) : (Negative Pressure) ≥ -0.095MPa
(General Power) : 15kW
(Actual power consumption) : (About)5kW
(Weight) : 2T
