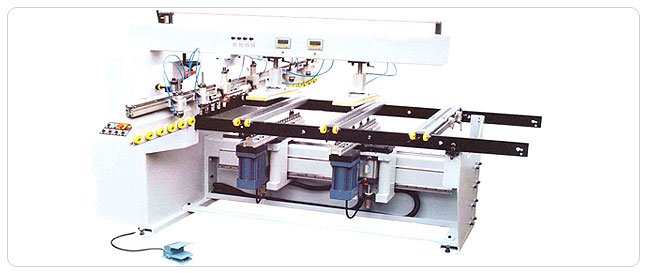

Three Rows Multi-Boring Machine / SM3


SALIENT FEATURES:

Robust machine Frame.
Digital Display of Vertical Heads running on High Precision Linear Guideways / Bearings.
One Sided, fixed carriage for clamping.
Solid Aluminum Drilling Blocks, due to which no Vibration.
SANDEEP quick Swiveling Drill Blocks fixing at 0-45-90
Continuous 32mm Pitch of each head.
80mm Pitch for Row holes.
2.2 KW Drilling Motors with High RPM and 2750 Min.
Pneumatic Cylinder 100mm for Strong Drill Feed.
100mm Vertical and Horizontal Stroke.
4 independently operated pneumatic stops.
3 Wide and easy adjustable workpiece supports.
Large working area with extended support table
A PLC Operated Machine with Choice of sequence of working of the Drilling Heads.

TECHNICAL SPECIFICATIONS:

* Travel Range : 1200-3100-40mm
* Work Piece Dimensions L-W : 30-3000 x 30-2000
* Work Piece Thickness : 5-60mm
* Drilling Spindles, Horizontal : 21 Nos.
* Drilling Spindles, Vertical : 21+21 Nos.
* Power Required : 6.6 KW
* Compressed Air Required : ≥ 6 Bar / 0.6 Mpa
* Air Consumption : 30 L/ Cycle
* Total Machine Weight (Approx.) : 1200 KG
* Machine Dimension L-W-H mm : 2200 x 1500 x 2250

ILLUSTRATION OF 63 SPINDLES WORKING IN ONE POSITION AND THE JOB FINISHED ON THAT IN ONE GO.
