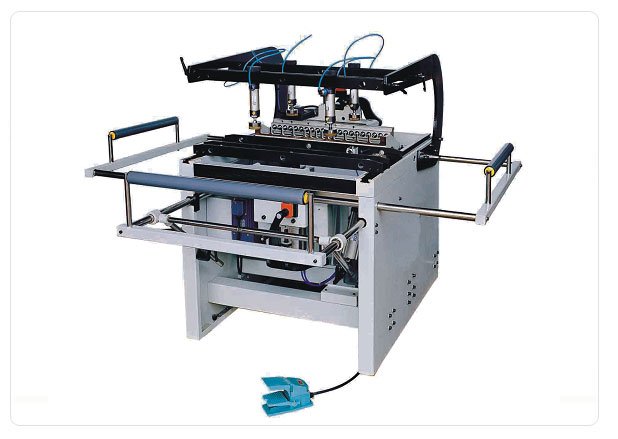

TWIN HEADS MULTI SPINDLES DRILLING MACHINE
MODEL SM-2


SALIENT FEATURES:
* Machine has rugged construction and is a combination of Two Single Line Horizontal Boring Units of 21 Spindles each.
* One Horizontal Boring Unit position can be changed from Horizontal to Vertical as well as it can be tilted to any desired angle.
* Second Drilling head on top of the table in vertical direction is fixed. Thus all drilling Boring Operations can be performed in one setting.
* Pneumatic System with A Mechanical Brake for the Rotation of One Drilling Head From 0 to 90 degrees. Possibility of Boring in any position Between 0 and 90 degrees.
* Manual Adjustment of the Boring Depth by means of a Stopper.
* Separate Knobs for setting up the boring heads upwards speed.
* A 3mtr. Long Fence with 4 tilting Stops.
* Extendable 400mm Long Support Roller Stand on the 2 Sides & in front for easy handing of large jobs.
* Six Pneumatic Clamps for firmly holding the job.
* Push Buttons for ‘ON’ and ‘OFF’ Commands.
* Selectors for Boring and For Rotating the Boring Unit.
* Foot Pedal ‘START’ Command.
* Overload Thermo magnetic Protection as per CE Regulation.
* Mechanical Digital Read out for Boring Unit adjustment provided.

TECHNICAL PARAMETERS
* Distance Between Drill Spindles

:

32mm
* Distance between to First to Last Spindle Centre

:

640mm
* No. of Drilling Heads : 2mm-Each Head 11Left/10 Right
* No. of Spindles on Each Head : 21
* Total Quantity of Drill Spindles : 42
* Maximum Working Thickness : 80mm
* Maximum Width between Heads : 550mm
* Minimum Width between Heads : 180mm
* In Side Diameter of Quick Change Bush : 10mm
* Maximum Dimensions of Works Piece : 650mm x 3000mm
* Height of Work Table : 900mm
* No. of Clamps : 6
* Power of Motors : 1.5 KW
* Rotation of spindles : 2800 RPM
* Noise Level (Maximum Allowed 90db) : 82 db
* Depth of Drilled Holes : 80mm
* Working Air Pressure : ≥0.6 Mpa
* Standard Air Pressure Consumption : 20 L/Cycle & 30 L/Cycle while using Tilting Head
