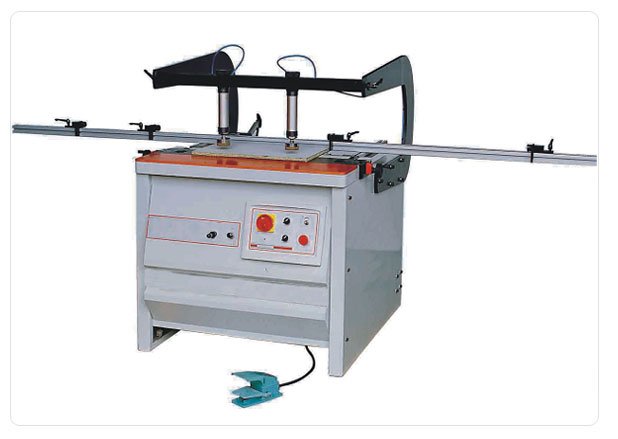

Multiple  Spindle Drilling Machines (Single Head) SM-1



SALIENT FEATURES:
* 21 Spindles with 32mm Centre Distance including Quick Change Adapters.
* The Machine full space between the head & the working table allows easy access of the operator for tool Change.
* Pneumatic Head Tipping – Innovative & reliable system of head rotation from 0° to 90° with Lock & Stop reference in any intermediate position.
* Manual Adjustment of the Boring Depth by means of a Stopper with scale.
* Pneumatic Adjustment of the Drilling Bit Entering Speed.
* Digital Counter for Adjustment of the working height in according with the panel thickness.
* Adjustable front stop for Vertical Boring.
* Front Reference Rack for Horizontal Boring
* Three Pneumatic Clamps with safety system to eliminate any possibility of interfering with the Boring Operations.
* Push Buttons for ‘ON’ and ‘OFF’ Commands.
* Selectors for Boring and For Rotating the Boring Unit.
* Foot Pedal ‘START’ Command.
* Overload Thermo magnetic Protection as per CE Regulations.

TECHNICAL SPECIFICATIONS:
* Center distance of spindles : 32 mm
* Spindles Number : 21
* Maximum Boring Depth : 75mm
* Working Pneumatic Power : 6~8 kg/cm2
* Installed Power : 1.8 KW
* Rotation Speed of the Spindle : 2800 rpm
* Noise Level (Maximum Allowed 90db) : 82 db
* Drilling Head Tilts : 0~90°
* Pneumatic Clamps : 3 Nos.
* FRL Unit : 1 No.
