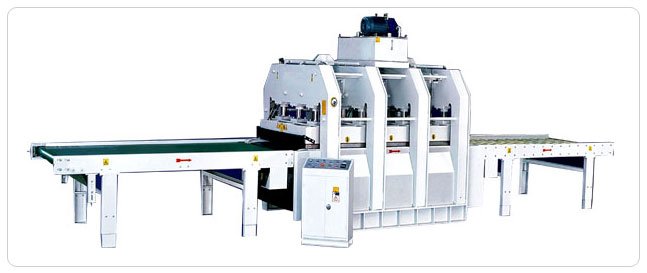

STA513B-400T/1


Short Cycle Lamination Hot Press

TECHNICAL SPECIFICATION :
Working Pressure : 400T
Platen Dimension : 1650x4000x45mm
Opening between Platens : 300mm
Q.ty and DIA of oil cylinder : 140mm, 12 Pcs
Closing Speed : 20-60mm/s
Rated Oil pressure : 21Mpa
Feeding Speed : 15.5m/min
Heating method : Steam
Max Temperature : 150 C
Overall Dimension : 14000x2450x2800mm
Machine Net weight : 14T
Installed Power : 12Kw
