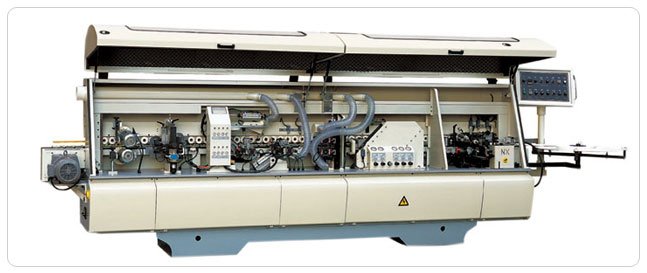

Automatic Through Feed Edge Banding Machine Models / SCR5, SCR6



TECHNICAL SPECIFICATIONS

Panel thickness No round trimming 10~60mm
  Round trimming 10~45mm
Panel width No round trimming min.60mm
  Round trimming min.130mm
Panel length No round trimming min.120mm(pvc)
  Round trimming min.140mm
Edge thickness No round trimming 0.4~15mm
  Round trimming 0.4~3mm
Edge width No round trimming 15~65mm
  Round trimming 15~50mm
Feeding speed No round trimming 13/18m/min
  Round trimming 13m/min
Frequency converter 200Hz
Installed Power 11.4KW
Pneumatic Power  0.7 Mpa
Total power consumption   8.58kw
Pneumatic power   0.7MPa
