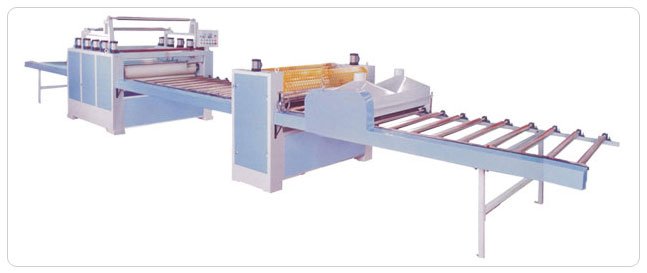

PAV Laminating Line

PAV Laminating Line
SALIENT FEATURES:
This Line bears such functions as glue spreading, dust remove, hot roll press and paper cutting. Upper press roller is driven by air pneumatic, which enable work continually and operated easily. This line creates smooth surface and high qualified product rate without any wrinkles or bubbles. It is a good ideal for large scale furniture and plywood panel
manufacturer.

TECHNICAL SPECIFICATIONS:
* Specification : 190 x 1350mm
* Width of Panel : 1220mm
* Thickness of Panel : 3-40mm
* Feeding Speed : 0-27 m/min
* Total Power : 12 KW
* Overall Dimensions : 11000 x 1900 x 1750
* Weight : 3500 KG
