SANDEEP TWO HEAD MULTI BORING MACHINE MODEL MZ 7221A

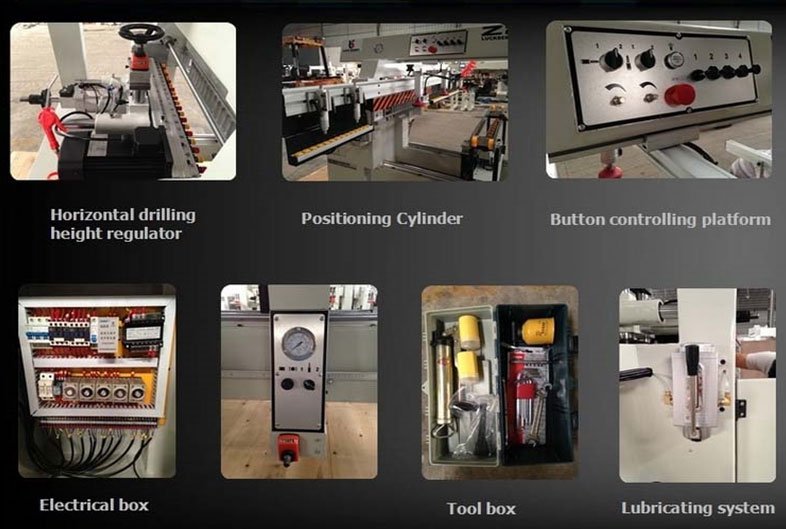

1. Button control; ensure high reliability and easy functioning.
2. Suitable for almost all panel materials of wood or plastic .
3. Cast- steel body, stable and durable.
4. Positioning cylinder, ensure working stability.
5. Two Rows Boring Machine for cabinet combine one horizontal and one vertical boring units to enhance working accuracy and reduce your production time.
6. The mechanical switch provides convenient and accurate adjustment for boring depth & Position.
7. The moving head can be rotated from parallel to perpendicular i.e. 0-90
8. Accuracy 0.2mm
9. 6 Nos. Collets are provided with each drilling head along with Tool Box Manual & required tools.



Maximum Drilling Diameter

35mm (Single Head)
13mm (Two Heads)
Maximum Drilling Depth 60mm
Maximum Center Distance Between Holes L Max. x W Max. = 1350mm x 640mm
Minimum Center Distance Between Holes L Min. x W Min. = 135mm x 32mm
Total Number of Drilling Spindles 21 x 2 = 42
Installation Pitch of Drilling Head 10mm
Moveable Scope of vertical Drill 1000mm
Spindle Speed 2800 rpm
Air Pressure 0.5~0.6mpa
Total Motor Power 3 KW
Weight 600 Kg
Overall Dimensions

2000 x 2500 x 1450mm
