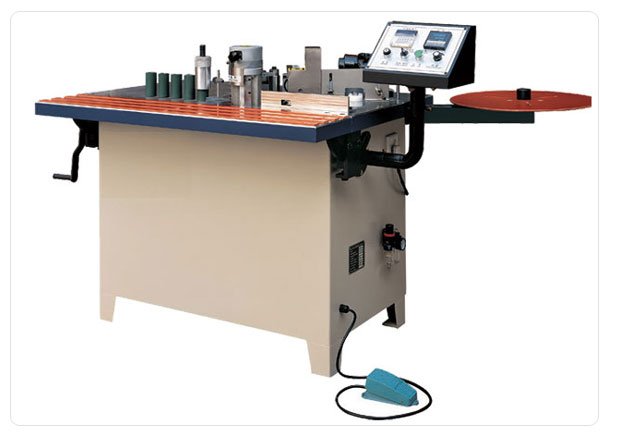

AUTOMATIC EDGEBANDER MACHINE MODEL MAX330 |
|
The MAX 330 Edge-banding machine with
glue pot can apply edges to straight panels with an automatic feed, and can
apply glue directly to panels with both wood and plastic edges, in coils up
to 3 mm thick, and strips up to 4 mm thick. It is equipped with automatic
front/rear trimming cut-off, and flush trimming/buffing on both sides of the
workpiece. |
TECHNICAL SPECIFICATIONS: |
|
|
A unique feeding guide -
there is no need to adjust. even when working with edges of varying
thicknesses. |
A stable copying disk.
|
A dust port in the table.
making it quick and easy to keep the environment clean. |
Electronic temperature
regulation. |
The saw can easily cut
coils up to 3 mm. |
Synthetic table guides.
and a heavy-duty roller to support both large and heavy bander jobs.
|
A table extension. with
adjustable front supports. |
For gluing large panels.
|
A feeding device with an
upper driven belt system. |
Precise adjustment and
read-out units for both thickness and trimming. |
|
The
floating roller and small chrome-plated roller are powerfuI
enough to feed the edge smoothly. The glue thickness and
quantity is adjustable. |
|
|
|
The
flush trimmers with copying pads have numerical indicators for
adjustments, as well as copying discs, which allow for
perfectly trimmed panels, as well as combined high quality
cutters for beveled/radius cuts. They also feature a high
efficiency dust hood, for a clean work area.
|
|
|
|
The
standard copy roller disc for flush trimming unit is accurate,
does not damaged the workpiece, and produces a better finish. |
|
|
|
The
buffing unit, which can be positioned wherever it is
necessary, perfectly cleans and polishes the edges, leaving
them in pristine condition. |
|
|
|
The 1.1
kgs capacity glue pot is Teflon-coated, which makes cleaning
quick and convenient. The 5 heating elements make bringing the
glue to the desired temperature simple, while the motorized
glue spreader's user-friendly design helps make work more
efficient. |
FEATURE |
DESCRIPTION |
PLC
control, with separate controls for each unit. The frame is constructed from
solid steel, making it both stable, and reliable |
The
MAX 330 can apply straight edges to panels with an automatic feed, and
spreads glue directly onto wood or plastic edges in coils up to 3mm thick
and strips up to 4 mm thick. |
Automatic stand-by temperature |
The
electronic temperature control automatically switches to standby mode when
not in use. |
Glue Pot |
The
Teflon-coated glue pot has a capacity of 1.1 kgs, and includes 5 heating
elements, as well as a glue temperature regulator, with automatic stand-by. |
Trimming cut-off for front/rear edge express |
The
working cycle is controlled by PLC, with separate controls for each unit. |
Dust device |
The
high•efficiency dust port allows dust to be collected directly under the
table, for a clean work environment. |
Flush with trimmers copying pads. |
Copying disc, numerical indicators for adjustments, combined
TCT cutters beveled/radius |
Overhead protection guard |
The
guard can be lifted, to allow for checking on small edge banding jobs. |
Panel thickness |
12
•45mm (numerical panel thickness indicator) |
Edge thickness |
Min•Max 0.4•3.0 mm/up to 4.0 mm for strips |
Feeding motor |
0.37 kw (automatic panel belt feeder). The large working table with 11
adjustable rollers is capable of supporting large panels. Includes an
extensible support for large panels. |
Glue & edge |
0.18 kw |
Heating elements |
5
pcs with 1.2 kw |
Heating In-feed fence |
0.32 kw (In cases where the panel. may be too wet due to poor weather
conditions, this feature helps dry it, in order to achieve a good finish) |
End
trimming motor |
0.18 kw 80mm (Automatic front/rear cut off trimming, and flush trimming and
buffing on both sides of the work piece) |
Flush trimming motor |
0.56 kw |
Buffing Unit |
0.12 kw*2 - 120 mm - 3000 RPM (Cleans and polishes edges) |
N.W./G.W.: |
348/464 kgs |
Packing Dimensions |
2,110 x 720 x l,260 mm |
Cutter |
Cutter-block with disposable cutters TCT beveled/radius 10,000RPM. 75mm
radius 2 mm/15 ' bevel (optional) |
Total power installed |
3.2
kw |
|
|
