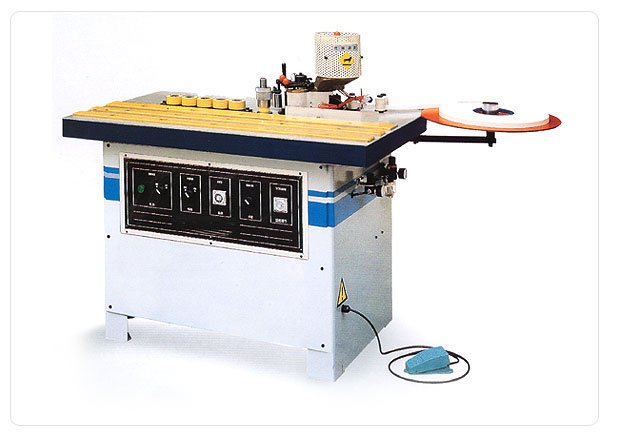

O.A.V EDGE BANDING MACHINE MODEL MAX340M |
|
 |
|
OAV's brand new Edge Bander MAX340M
combines an excellent user experience with top-quality banding.This
affordable machine is equipped with end trimming, flush trimming and
scraping, and buffering functions. Featuring an user-friendly adjustment
with numerical indicators as well as an LCD display, it allows for stable
and reliable working conditions which will raise the quality of your
products while also saving time.
The MAX340M is the perfect choice if you are looking to optimize your
investment and take your organization's output and performance to the next
level!
Features |
|
 |
OPERATING PANEL WITH LED KEYPAD
Glue temperature settings
Units can be selected and disengaged individually
Heating fence is standard |
|
|
|
 |
GUILLOTINE SHEARS
Coiled material up to 3mm in thickness can be trimmed by
the guillotine shears. |
|
|
|
|
 |
EDGEBANDING FOR COILED MATERIALS
Edge feeding is automatic for roller materials with a
thickness of 0.4 -3mm
|
|
|
|
|
 |
GLUE
POT
The 1.2 kg Teflon-coated glue pot is designed for EVA hot-
melt glue. The glue is applied
with an adjustable glue roller.
|
|
|
|
|
 |
HEAVY-DUTY CHAIN FEEDER
The steady work-piece feeding mechanism is comprised of
a chain and set of drive
rollers, which will leave no scratches
on the work-piece surface.
|
|
|
|
|
 |
SCRAPING UNIT - RADIUS SCRAPING UNIT
The scraping unit fine-tunes the edge radius and removes
excess glue. |
|
|
|
 |
END CUTTING UNIT
The unit is mounted on high-precision linear bearings,
which ensure perfect cutting results. meets any challenge,
regardless of edge type and thickness. |
|
|
|
 |
BUFFING UNIT
The buffing unit leaves a super finish on ABS and PVC
edging,
and removes any discoloration on the edges, which is
especially noticeable when working with dark edge material.
|
|
|
|
 |
PRESSURE ROLLER
The pressure roller unit consists of one large roller,
followed by a smaller one. The
purpose of the unit is to improve the glue bond
between the edge and the material.The unit is
mechanically spring¬loaded and
due to the "Quick" setup system,
can be adjusted exactly to the required edge
thickness. The adjustable spring system allows for a perfect
bond between the panel and edge every time. |
|
|
|
 |
FLUSH TRIMMING UNIT
The standard copy roller disc for flush trimming unit is
accurate, does not damaged the workpiece, and produces a
better finish. |
|
|
|
 |
|
FEATURE |
DESCRIPTION |
|
PLC
Control, with separate controls for each unit. The frame is constructed from
solid steel making it both stable, and reliable |
can
apply straight edges to panels with an automatic feed, and spreads glue
directly onto wood or plastic edges in coils up to 3mm thick and strips up
to 4 mm thick. |
|
Min. Panel Size |
90x90mm |
|
Glue Pot |
The
Teflon-coated glue pot has a capacity of 1.2 kgs, and includes 5 heating
elements, ensure a quick heat up time. |
|
Trimming cut-off for front/rear edge express |
The
working cycle is controlled by PLC, with separate controls for each unit. |
|
Dust device |
The
high•efficiency dust port allows dust to be collected directly under the
table, for a clean work environment. |
|
Flush with trimmers copying pads. |
Copying disc, numerical indicators for adjustments, combined |
|
Overhead protection guard |
TCT cutters radius The
guard can be lifted, to allow for checking on small edge banding jobs. |
|
Panel thickness |
12
•45mm (numerical panel thickness indicator) |
|
Edge thickness |
Min•Max 0.4•3.0 mm/up to 4.0 mm for strips |
|
Feeding motor |
3ph-0.56kw; 1ph-0.75kw (automatic panel
belt feeder) the large working table with chain system is capable of
supporting large panels. Includes an extensible support for large panels. |
|
Feeding speed |
7 m/min |
|
Glue & edge |
0.8 kw |
|
Heating elements |
5
pcs with 1.2 kw |
|
Heating In-feed fence |
0.32 kw (In cases where the panel. may be too wet due to poor weather
conditions, this feature helps dry it, in order to achieve a good finish) |
|
End
trimming motor |
0.18 kw 80mm (Automatic front/rear cut off trimming, and flush trimming and
buffing on both sides of the work piece) |
|
Flush trimming motor |
0.56 kw |
|
Buffing Unit |
3ph-012kw ; 1ph-0.18kw x 2-120mm –
3000 rpm (clean and polishes edges) |
|
N.W./G.W.: |
440kgs /507 kgs |
|
Total power installed |
3.8 kw |
|
Scraping unit |
Radius = 2mm |
|
|
